Hard turning bearing case

Berlt tools provide hard turning, hard boring, grooving and other CBN tools for the field of hardened steel, and have formed a complete set of hard cutting tool solutions ,from rough machining → semi-finishing → finishing → super finishing For users to choose, the following is the case of Berlt CBN tool hard  turning car bearings.

Case Enterprise: A domestic bearing factory

Machine tool: Double-column vertical lathe C545

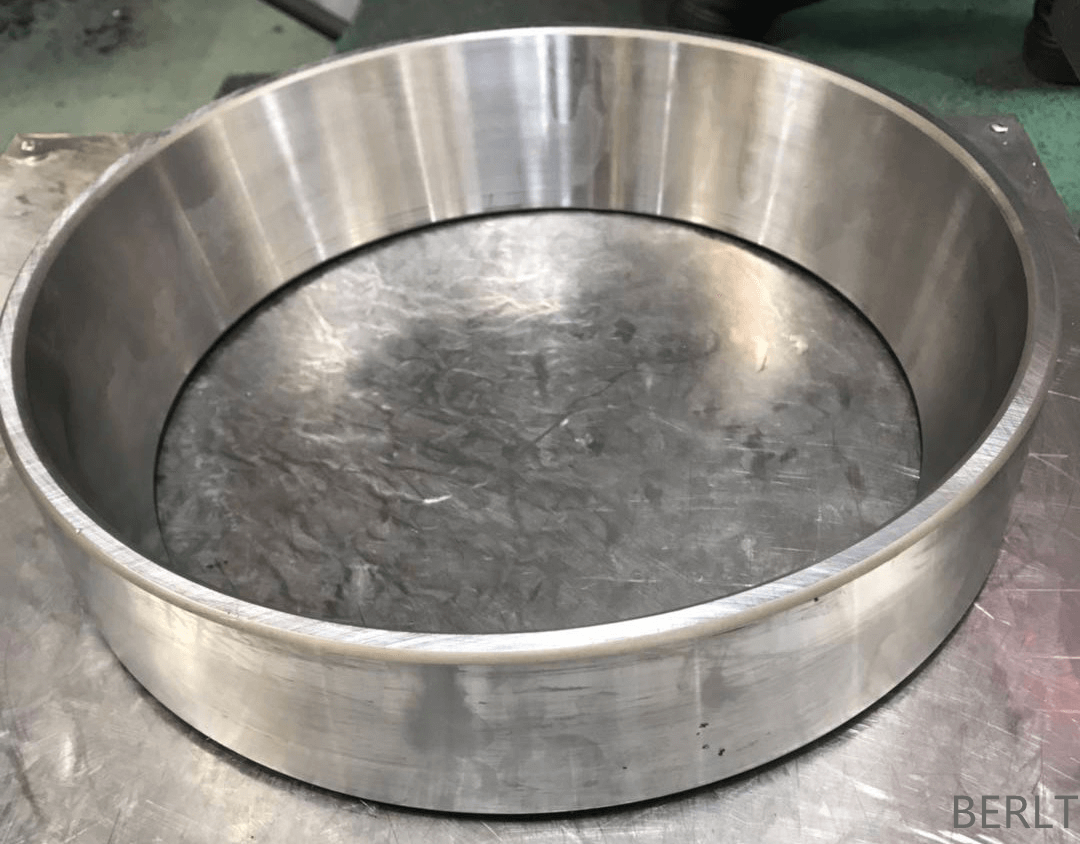

PCBN Inbseerts for Bearing Inner And Outer Ring

	Workpiece name: bearing inner and outer ring
	Workpiece material: bearing steel (hardness HRC58-62)
	Insert model：BTS2800 SNGN160816
	Cutting parameters :Vc120m/min         Fr0.4mm/r     ap0.5mm
	Processing method: dry cutting
Tool material	Tool life	Final failure form
Berlt BTS2800 material	6 pieces	normal abrasion
CBN insert of a certain brand	4 pieces	Rupture
Note: The inner and outer rings of hard car bearings use solid CBN inserts. Compared with other brands of CBN tools, the tool life of Berlt tools is increased by 50%, which greatly improves the cutting efficiency.

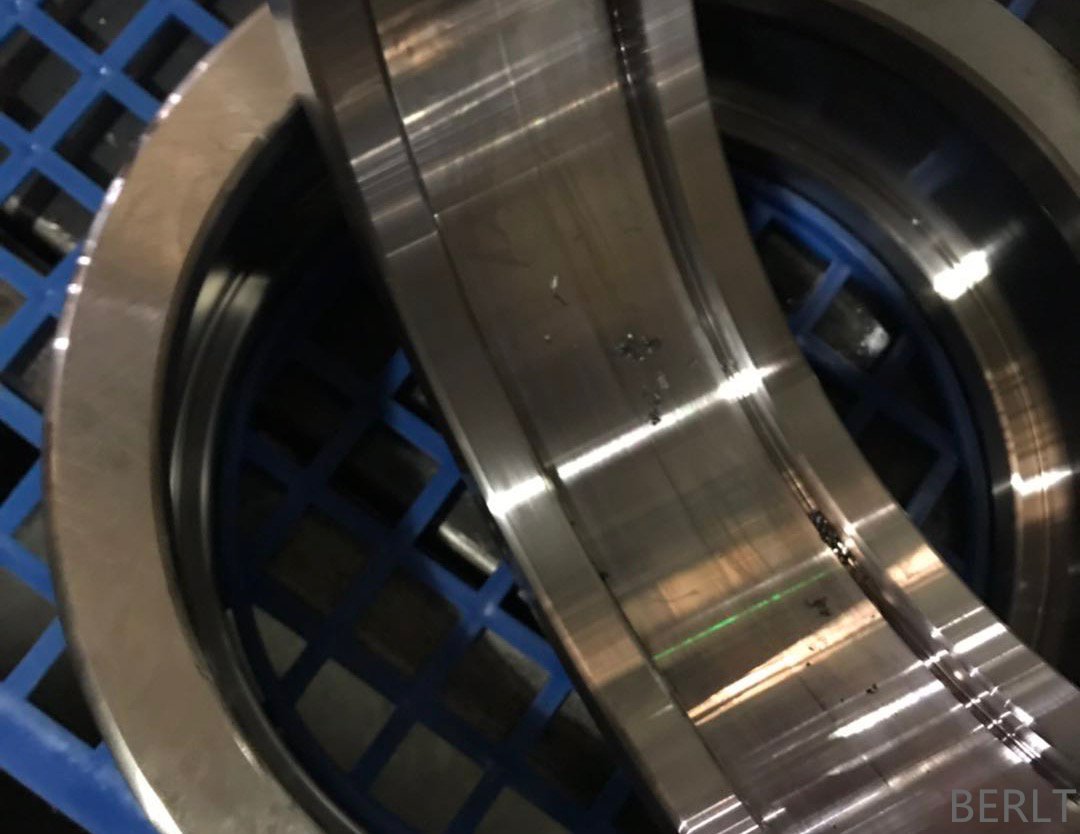

PCBN Inserts for Bearing Raceway

	Workpiece name: bearing raceway
	Workpiece material: 40GrMoTi (hardness HRC58-62)
	Insert model：BTS2800 RNMN0904
	Cutting parameters：Vc=130m/min，Fr=0.25mm/r，ap=0.5mm
	Processing method: dry cutting
Tool material	Tool life	Final failure form
Berlt BTS2800 material	10 pieces	normal abrasion
A foreign CBN insert	10 pieces	normal abrasion
Note: Bearing raceway processing uses solid CBN inserts. Compared with a foreign CBN tool, Berlt tools have the same life, good tool consistency and stability, and high cost performance.

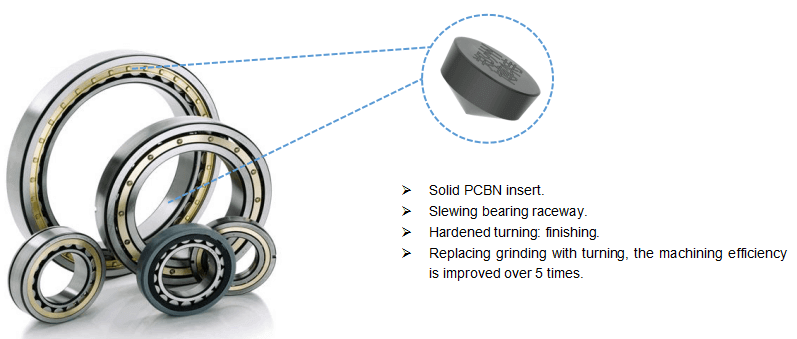

PCBN Inserts for Bearing Making Industry

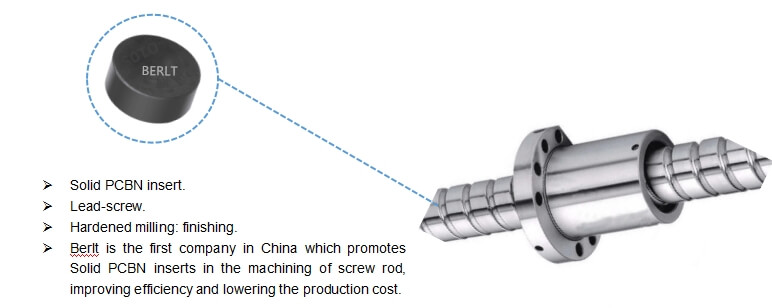

PCBN Inserts for Screw Rod

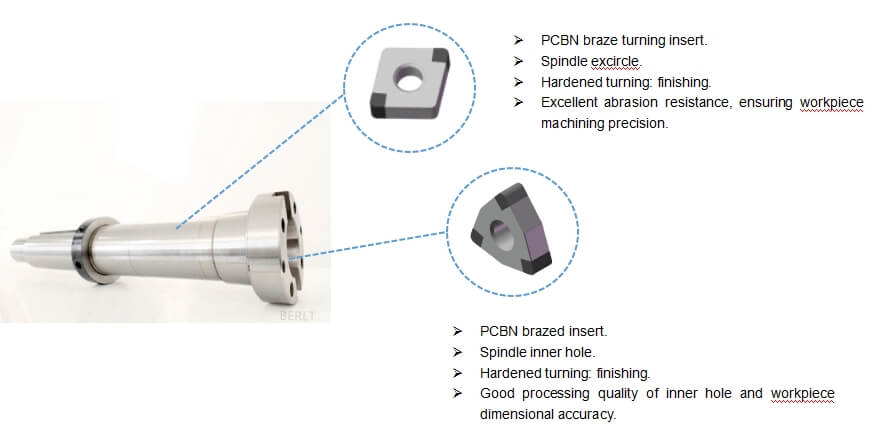

PCBN Inserts for Machine Tool Spindle

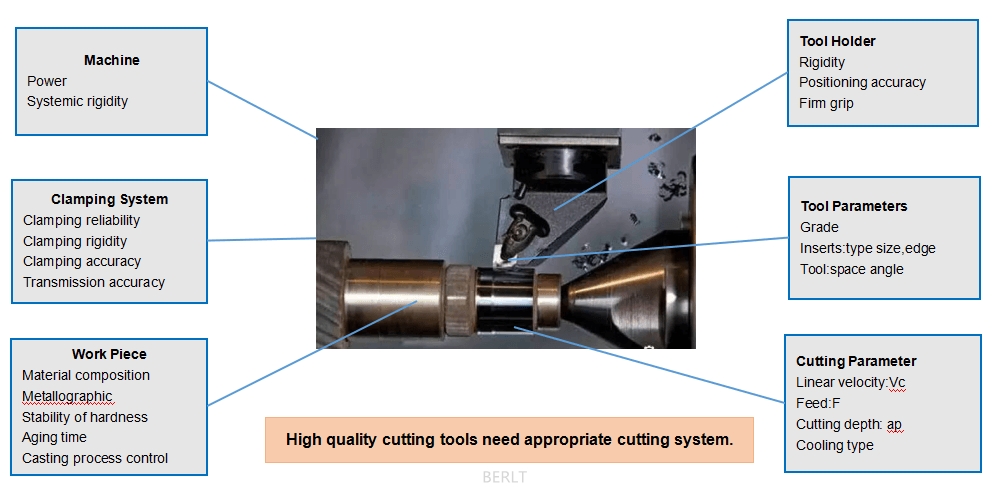

Factors affecting the cutting performance of PCBN inserts
